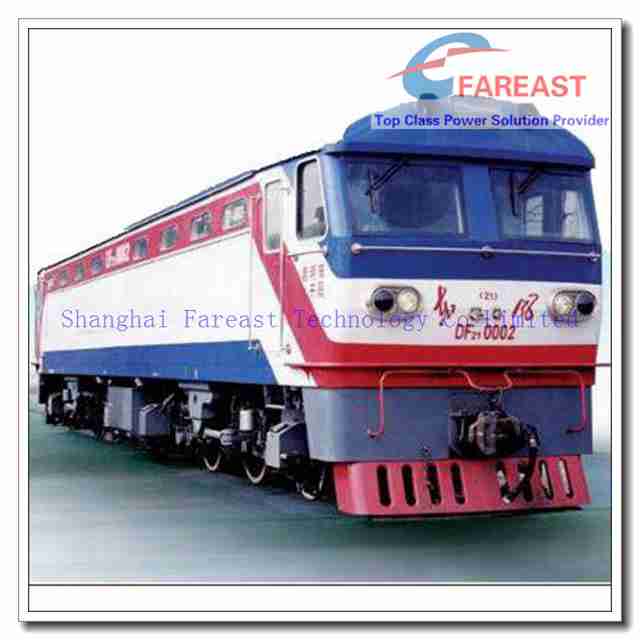

China Diesel Locomotive And Locomotive Engine Parts

Diesel Locomotive

SDD7

SDD16

SDD17

Gauge

1676mm

1435mm

1435mm

Transmission

AC-DC

AC-DC

AC-DC

Axle Arrangement

Co-Co

Co-Co

Co-Co

Wheel diameter

1050mm

1050mm

1050mm

axle Load

18.5t

(23±0.69)t

25t

Service Weight

111t

(138±4.14)t

150t

Engine Power

1678kW

3100kW

2070kW

Max speed

120km/h

100km/h

100km/h

Continuous Speed

21.5km/h

28.2km/h/30km/h

19.7km/h

Max Tractive force

320kN

520kN/440kN

556kN

Tractive force

200kN

369kN/347kN

369.1kN

Min.Radius of Curvature Negotiated

100m

145m

100m

Fuel tank capacity

6000L

9000L

10000L

Coupler Center Height

880mm

889mm

 Diesel Engine Model

CAT3516B

16V280ZJA

12V280ZJ

End user

Argentina

Guinea

Saudi Arabia

Diesel Locomotive

SDD20

SDD21

HXN5

Gauge

1067mm

1435mm

1435MM

Transmission

AC-DC

AC-DC

AC-DC

Axle Arrangement

Co-Co

Co-Co

Co-Co

Wheel diameter

915mm

1050mm

axle Load

20x(1±3%)t

22.5t

25t

Service Weight

120x(1±3%)t

135t

Engine Power

2460kW

2940kW

4660kW

Max speed

105km/h

100km/h

120 km/h

Continuous Speed

26.6km/h

19.7km/h

25 km/h

Max Tractive force

313kN

556kN/420kN

620KN

Tractive force

259.7kN

369kN/351kN

565KN

Min.Radius of Curvature Negotiated

100m

80m

145m

Fuel tank capacity

9000L

8000L

9000L

Coupler Center Height

(885±15)mm

(1040~1045)mm

 Diesel Engine Model

7FDL12

12V280ZJ

GEVO16

End user

Tanzania Zambia

Iran

China

Diesel Locomotive

SDA1

DF8B

DF12

Gauge

1435MM

1435MM

1435mm

Transmission

Axle Arrangement

Co-Co

Co-Co

Co-Co

Wheel diameter

1067mm

1050mm

1050mm

axle Load

22.3t

25t

23t

Service Weight

134t

150t

138

Engine Power

3000kw

3680kw

2430KW

Max speed

120km/h

100km/h

100km/h

Continuous Speed

16km/h

31.2km/h

20.5km/h

Max Tractive force

600kN

480KN

437KN

Tractive force

520kN

380KN

317.7KN

Min.Radius of Curvature Negotiated

Fuel tank capacity

Coupler Center Height

Engine Model

MTU20V4000R43L

16V280ZJA

16V240ZJA

End user

Australia

Iran,Gabon

Libya

Diesel Locomotive

SDD23

SDD22

SDD19

Gauge

1676mm

1676mm

1520mm

Transmission

AC-DC

AC-DC

AC-DC

Axle Arrangement

CO-CO

CO-CO

BO-BO-BO-BO

Wheel diameter

1092MM

1016MM

1050mm

axle Load

22.5t

17.5t

22.5t

Service Weight

135t

105t

180t

Engine Power

2800kw

1600kw

1500kw

Max speed

140km/h

120km/h

100km/h

Continuous Speed

26.8km/h

21.5km/h

8.7km/h

Max Tractive force

401KN

336KN

580KN

Tractive force

257KN

220KN

427KN

Min.Radius of Curvature Negotiated

Fuel tank capacity

Coupler Center Height

 Diesel Engine Model

CAT C175

CAT 3516B

6280ZJ

End user

Pakistan

Pakistan

Uzbekistan

Diesel Locomotive

SDD5

SDD4

CKD9C

Gauge

1520mm

1520mm

1520mm

Transmission

AC-DC

Axle Arrangement

CO-CO

CO-CO

CO-CO

Wheel diameter

1050mm

1050mm

1050mm

axle Load

(23±0.69)t

(23±0.69)t

(23±0.69)t

Service Weight

(138±4.14)t

(138±4.14)t

(138±4.14)t

Engine Power

2940KW

2000KW

2430KW

Max speed

100km/h

100km/h

100km/h

Continuous Speed

23.6km/h

16km/h

16km/h

Max Tractive force

442kn

442kn

435kn

Tractive force

340kn

340kn

324kn

Min.Radius of Curvature Negotiated

Fuel tank capacity

Coupler Center Height

     Diesel Engine Model

16V240ZJD

12V240ZJ

16V240ZJB

End user

Kazakhstan

Kazakhstan

Turkmenistan
