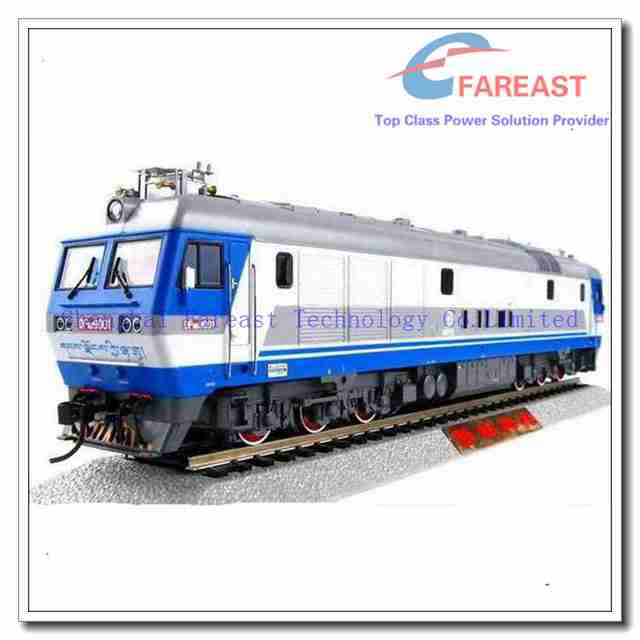

DF8BI
Fareast
Diesel Locomotive
China Diesel Locomotive list:
Brand | QISHUYAN | QISHUYAN | QISHUYAN |
Diesel Locomotive | SDJ6 DMU | SDA3 | SDA2 |
Gauge | 1067mm | 1000mm | 1067mm |
Transmission | AC-DC | AC-DC-AC | AC |
Axle Arrangement | Bo-Bo | Co-Co | Co-Co |
Wheel diameter | 914/876mm | 1067mm | 1031/955mm |
axle Load | 18T | 20t | 20t |
Service Weight | 72t | 120t | 120t |
Engine Power | 895kW | 2380kW | 2700kW |
Max speed | 100km/h | 100km/h | 100km/h |
Continuous Speed | 16.3km/h | 17.7km/h | 17.3km/h |
Max Tractive force | 212kN | 460kN | 490 kN |
Tractive force | 132kN | 360kN | 433 kN |
Min.Radius of Curvature Negotiated | 80m | 130m | 80m |
Fuel tank capacity | 3000L | 5500L | 8000L |
Coupler Center Height | (860±10)mm | 850mm | （818±6)mm |
Diesel Engine Model | CAT C175-16 | MTU 20V4000R43 | |
End user | Nigeria | SRT | Australia |
Brand | QISHUYAN | QISHUYAN | QISHUYAN |
Diesel Locomotive | CKD4C（DF8B-VEN） | DF8BI | CKD6D |
Gauge | 1435mm | 1435mm | 1000mm |
Transmission | AC-DC | AC-DC | AC-DC |
Axle Arrangement | Co-Co | Co-Co | Bo-Bo |
Wheel diameter | 1050mm | 1050mm | 1000mm |
axle Load | (25±0.75)t | (23±0.69)t | (15±3%)t |
Service Weight | (150±4.5)t | (138±4.14)t | (60±3%)t |
Engine Power | 3100kW | 3100kW | 880kW |
Max speed | 100km/h | 100km/h | 100km/h |
Continuous Speed | 28.2km/h | 28.2km/h | 19.4km/h |
Max Tractive force | 520kN/480kN | 520kN/480kN | 149kN |
Tractive force | 369kN | 369kN | 110kN |
Min.Radius of Curvature Negotiated | 145m | 80m | 80m |
Fuel tank capacity | 9000L | 9000L | 2500L |
Coupler Center Height | （875±10)mm | (1040-1045)mm | (850±10)mm |
Diesel Engine Model | 16V280ZJA | 16V280ZJA | CAT3508B |
End user | Venezuela | Iran | Cambodia |
Brand | QISHUYAN | QISHUYAN | QISHUYAN |
Diesel Locomotive | JMD1360 | SDD6 | SDD6A |
Gauge | 1435mm | 1067mm | 1067mm |
Transmission | AC-DC | AC-DC | AC-DC |
Axle Arrangement | Co-Co | Co-Co | Co-Co |
Wheel diameter | 1050mm | 914mm | 914mm |
axle Load | 17.5±3%t | 16x(1±3%)t | 16x(1±3%)t |
Service Weight | 105±3%t | 96x(1±3%)t | 96x(1±3%)t |
Engine Power | 774kW | 1640kW | 1640kW |
Max speed | 100km/h | 120km/h | 120km/h |
Continuous Speed | 14.5km/h | 21.7km/h | 21.3km/h |
Max Tractive force | 280kN | 313kN | 314kN |
Tractive force | 188kN | 200kN | 189kN |
Min.Radius of Curvature Negotiated | 100m | 80m | 80m |
Fuel tank capacity | 3500L | 4000L | 4000L |
Coupler Center Height | 889mm±10mm | 889mm±10mm | |
Diesel Engine Model | CAT3508B | Cummins QSK60-L1 | Cummins QSK60-L1 |
End user | Vietnam | Namibia,Angola | Angola |
Brand | QISHUYAN | QISHUYAN | QISHUYAN |
Diesel Locomotive | SDD9 | CKD6 | CKD7 |
Gauge | 1000mm | 1000mm | 1000mm |
Transmission | AC-DC | AC-DC | AC-DC |
Axle Arrangement | bo-bo | bo-bo-bo | bo-bo-bo |
Wheel diameter | 914mm | 1000mm | 1000mm |
axle Load | 18x(1±3%)t | 12x(1±3%)t | 12x(1±3%)t |
Service Weight | 72x(1±3%)t | 72x(1±3%)t | 72x(1±3%)t |
Engine Power | 1250kw | 880kw | 1280kw |
Max speed | 80km/h | ||
Continuous Speed | 22.4km/h | 10.6km/h | 17.3km/h |
Max Tractive force | 237kn/254kn | 210.5kn | 230kn |
Tractive force | 143kn | 184.3kn | 187kn |
Min.Radius of Curvature Negotiated | 80m | 62m | 62m |
Fuel tank capacity | 3200L | 3200L | 3200L |
Coupler Center Height | 750mm±10mm | 584mm | 584mm |
Diesel Engine Model | mtu 12v4000r41r | mtu12v396c13 | mtu16v396tc14 |
End user | Madagascar | Myanmar | Myanmar |
