KTA50-M1600
Cummins
cummins engine

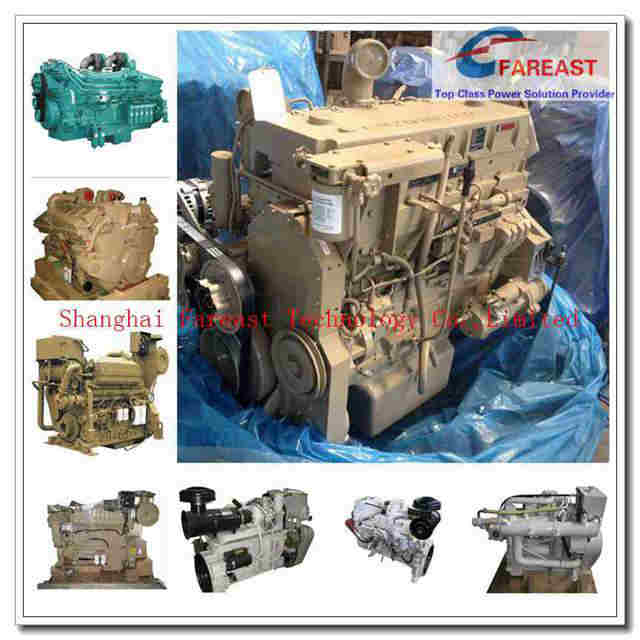

Cummins Marine Engine as below:
Cummins Marine engine list | ||||||||
Cummins 4BT3.9 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 4BT3.9-M80 | 4 | 102/120 | 3.9 | 60/2200 | propulsion | 776*583*908 | 331 |
Cummins | 4BTA3.9-M100 | 4 | 102/120 | 3.9 | 74/2200 | propulsion | 776*583*908 | 331 |
Cummins | 4BTA3.9-GM47 | 4 | 102/120 | 3.9 | 47/1500 | auxiliary | 776*583*908 | 331 |
Cummins | 4BTA3.9-GM55 | 4 | 102/120 | 3.9 | 55/1500 | auxiliary | 776*583*908 | 331 |
Cummins | 4BTA3.9-GM65 | 4 | 102/120 | 3.9 | 65/1800 | auxiliary | 776*583*908 | 331 |
Cummins 6BT5.9 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 6BT5.9-M120 | 6 | 102/120 | 5.9 | 90/2200 | propulsion | 1182*684*1128 | 443 |
Cummins | 6BTA5.9-M150 | 6 | 102/120 | 5.9 | 110/2200 | propulsion | 1182*712*1128 | 460 |
Cummins | 6BT5.9-GM83 | 6 | 102/120 | 5.9 | 83/1500 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTA5.9-GM100 | 6 | 102/120 | 5.9 | 100/1500 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTA5.9-GM100 | 6 | 102/120 | 5.9 | 100/1800 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTAA5.9-GM115 | 6 | 102/120 | 5.9 | 115/1500 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTA5.9-GM120 | 6 | 102/120 | 5.9 | 120/1800 | auxiliary | 1182*712*1128 | 460 |
Cummins 6CTA8.3 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 6CTA8.3-M188 | 6 | 114/135 | 8.3 | 138/2328 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M205 | 6 | 114/135 | 8.3 | 151/2328 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M215 | 6 | 114/135 | 8.3 | 160/2200 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M230 | 6 | 114/135 | 8.3 | 172/2200 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M240 | 6 | 114/135 | 8.3 | 179/2200 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M260 | 6 | 114/135 | 8.3 | 194/1800 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CT8.3-GM115 | 6 | 114/135 | 8.3 | 115/1500 | auxiliary | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-GM129 | 6 | 114/135 | 8.3 | 129/1800 | auxiliary | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-GM155 | 6 | 114/135 | 8.3 | 155/1500 | auxiliary | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-GM175 | 6 | 114/135 | 8.3 | 175/1800 | auxiliary | 1405*768*1179 | 604 |
Cummins 6LTAA8.9 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 6LTAA8.9-M300 | 6 | 114/145 | 8.9 | 224/1800 | propulsion | 1500*1100*1450 | 640 |
Cummins | 6LTAA8.9-M315 | 6 | 114/145 | 8.9 | 230/2134 | propulsion | 1500*1100*1450 | 640 |
Cummins | 6LTAA8.9-GM200 | 6 | 114/145 | 8.9 | 200/1500 | auxiliary | 1500*1100*1450 | 640 |
Cummins | 6LTAA8.9-GM215 | 6 | 114/145 | 8.9 | 215/1800 | auxiliary | 1500*1100*1450 | 640 |
Cummins QSNT Series marine engine listing | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | QSNT-M240 | 6 | 140/152 | 14 | 179/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M300 | 6 | 140/152 | 14 | 224/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M350 | 6 | 140/152 | 14 | 261/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M400 | 6 | 140/152 | 14 | 298/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M450 | 6 | 140/152 | 14 | 336/1800 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-DM1 | 6 | 140/152 | 14 | 322/1500 | auxiliary | 1975*935*1598 | 1430 |
Cummins | QSNT-DM2 | 6 | 140/152 | 14 | 381/1500 | auxiliary | 1975*935*1598 | 1430 |
Cummins NTA855 Marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | NT855-M190 | 6 | 140/152 | 14 | 140/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NT855-M240 | 6 | 140/152 | 14 | 179/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NT855-M270 | 6 | 140/152 | 14 | 201/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NT855-M300 | 6 | 140/152 | 14 | 224/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M350 | 6 | 140/152 | 14 | 261/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M400 | 6 | 140/152 | 14 | 298/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M400 | 6 | 140/152 | 14 | 298/2100 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M450 | 6 | 140/152 | 14 | 336/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 180/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 240/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 284/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 287/1800 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 313/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 317/1800 | auxiliary | 1965*952*1538 | 1433 |
Cummins KTA19 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | KT19-M425 | 6 | 159/159 | 18.9 | 317/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M470 | 6 | 159/159 | 18.9 | 351/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M500 | 6 | 159/159 | 18.9 | 373/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M550 | 6 | 159/159 | 18.9 | 410/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M600 | 6 | 159/159 | 18.9 | 447/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M700 | 6 | 159/159 | 18.9 | 522/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M700 | 6 | 159/159 | 18.9 | 522/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M3 | 6 | 159/159 | 18.9 | 447/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M4 | 6 | 159/159 | 18.9 | 522/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | K19-M500 | 6 | 159/159 | 18.9 | 373/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | K19-M550 | 6 | 159/159 | 18.9 | 410/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | K19-M600 | 6 | 159/159 | 18.9 | 447/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 336/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 403/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 448/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 392/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 463/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 507/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 358/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 410/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 425/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 448/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 485/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 507/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins KTA38 Marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | KT38-M780 | 12 | 159/159 | 37.8 | 582/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KT38-M800 | 12 | 159/159 | 37.8 | 596/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M750 | 12 | 159/159 | 37.8 | 560/1600 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M800 | 12 | 159/159 | 37.8 | 596/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M850 | 12 | 159/159 | 37.8 | 634/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M900 | 12 | 159/159 | 37.8 | 671/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M0 | 12 | 159/159 | 37.8 | 671/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1000 | 12 | 159/159 | 37.8 | 746/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1 | 12 | 159/159 | 37.8 | 746/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1050 | 12 | 159/159 | 37.8 | 783/1600 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1100 | 12 | 159/159 | 37.8 | 821/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1200 | 12 | 159/159 | 37.8 | 895/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M2 | 12 | 159/159 | 37.8 | 895/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1300 | 12 | 159/159 | 37.8 | 969/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1350 | 12 | 159/159 | 37.8 | 1007/1900 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KT38-DM | 12 | 159/159 | 38 | 560/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KT38-DM | 12 | 159/159 | 38 | 679/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 746/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 821/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 880/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 970/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 560/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 679/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 664/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 814/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins KTA50 Marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | KTA50-M1600 | 16 | 159/159 | 50 | 1193/1800 | propulsion | 3343*1331*1909 | 5431 |
Cummins | KTA50-M1700 | 16 | 159/159 | 50 | 1268/1800 | propulsion | 3343*1331*1909 | 5431 |
Cummins | KTA50-M1800 | 16 | 159/159 | 50 | 1342/1800 | propulsion | 3343*1331*1909 | 5431 |
Cummins | KTA50-DM | 16 | 159/159 | 50 | 1097/1500 | auxiliary | 3343*1331*1909 | 5431 |
Cummins | KTA50-DM | 16 | 159/159 | 50 | 1291/1800 | auxiliary | 3343*1331*1909 | 5431 |
Cummins QSM11 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 295(220)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 350(260)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 349(260)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 398(297)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 400(298)@2100 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 448(334)@2100 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 450(336)@2100 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 602(449)@2300 | Marine | 1335*825*1159 | 940 |
Cummins engine model Compilation Rules,example :
KTA50-M1600 | |
K | K Series |
T | Turbocharger |
A | Aftercooling |
50 | 50L Dispalcement |
M | Marine main engine |
| 1600 | 1600HP |
Cummins engine application:
SN | Symbol | Application |
1 | M | Marine main propulsion engine |
2 | GM | Marine auxiliary engine |
3 | DM | Marine auxiliary engine |
4 | G | Land generator engine |
5 | P | Fire pump,water pump and other pumps |
6 | L | Rail vehicle |
7 | C | construction machinery (crane, excavator, bulldozer, loader,agricultural machinery etc) |
8 | Other | Vehicle/Automotive(Dump,truck,tractor truck,crane,cement mixed,bus,truck etc) |
9 | Other | Industrial |
Not only supply above engine, also can supply:
Brand | Model | Application |
Cummins | 4B Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | 6B Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | 6C Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | 6L Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | ISD4.5 Series Engine | Automotive |
Cummins | ISB5.9 Series Engine | Automotive |
Cummins | ISD6.7 Series Engine | Automotive |
Cummins | ISL8.9 Series Engine | Automotive |
Cummins | ISL9.5 Series Engine | Automotive |
Cummins | ISZ13 Series Engine | Automotive |
Cummins | ISX12 Series Engine | Automotive |
Cummins | EQB Series Engine | Automotive |
Cummins | ISF Series engine | Automotive |
Cummins | QSB3.9 Series engine | Construction machinery,Generator,Pump |
Cummins | QSB4.5 Series engine | Construction machinery |
Cummins | QSB5.9 Series engine | Construction machinery,Generator |
Cummins | QSB6.7 Series engine | Construction machinery,Generator,Pump |
Cummins | QSC8.3 Series engine | Construction machinery |
Cummins | QSL8.9 Series engine | Construction machinery,Generator |
Cummins | QSZ13 Series engine | Construction machinery,Generator |
Cummins | NTC290 Series engine | Automotive |
Cummins | NT855 Series engine | Construction,Marine,Pump,Generator |
Cummins | K19 Series engine | Construction,Marine,Pump,Generator |
Cummins | K38 Series engine | Construction,Marine,Pump,Generator |
Cummins | K50 Series engine | Construction,Marine,Pump,Generator |
Cummins | QSK19 Series engine | Construction |
Cummins | QSK38 Series engine | Construction |
Cummins | QSNT Series engine | Marine and Generator |
Cummins | MTA11 Series engine | Generator |
Cummins | M11 Series engine | Industrial Market |
Cummins | QSB7 Series engine | Excavating machinery |
Cummins | 6L9.3 Series engine | Excavating machinery |
Cummins | 6LTAA9.3 Series engine | Excavating machinery |
Cummins | QSL9.3 Series engine | Excavating machinery |
Cummins | ISM11 Series engine | Heavy truck |
Cummins | QSM11 Series engine | Marine |
Beside engine,also can supply above engine spare parts
SN | Parts Descriptions |
1 | cylinder head, cylinder block, cylinder liner,crankshaft,camshaft |
2 | piston, piston ring, piston pin,conrod,flywheel,flywheel housing,exhaust |
3 | main bearing, conrod bearing, thrust bearing |
4 | fuel injector, fuel injection pump, common rail |
5 | oil pan gasket, cylinder head gasket |
6 | overhaul gasket kit, upper gasket kit, lower gasket kit |
7 | intake valve,exhuast valve,valve seat,valve rotating |
8 | fuel transfer pump, water pump, oil pump, vacuum pump, power steering |
9 | oil filter, fuel filter, fuel water separator, air filter |
10 | turbocharger,alternator,starter,air compressor |
11 | other spare parts |
Beside cummins engine, other brand engine and spare parts also available,such as:
SN | Brand | Engine or Spare parts |
1 | Deutz | Engine and spare parts |
2 | Googol | Engine and spare parts |
3 | Baudouin | Engine and spare parts |
4 | Doosan | Engine and spare parts |
5 | MAN | Engine and spare parts |
6 | Iveco | Engine and spare parts |
7 | Isuzu | Engine and spare parts |
8 | Toyota | Engine and spare parts |
9 | Nissan | Engine and spare parts |
10 | Shangchai | Engine and spare parts |
11 | Weichai | Engine and spare parts |
12 | Yuchai | Engine and spare parts |
13 | Sinotruk | Engine and spare parts |
14 | Fada | Gearbox |
15 | Advance | Gearbox |
16 | ABB | Turbocharger |
17 | MAN | Turbocharger |
18 | EMD | Spare parts |
19 | GE | Spare parts |
20 | ALCO | Spare parts |
21 | MAN | Spare parts |
22 | MTU | Spare parts |
23 | Pielstick | Spare parts |
24 | DAIHATSU | Spare parts |
25 | MAK | Spare parts |
26 | SULZER | Spare parts |
27 | WARTSILA | Spare parts |
28 | SKL | Spare parts |
29 | RUSTON | Spare parts |
30 | YANMAR | Spare parts |
31 | AKASAKA | Spare parts |
32 | HANSHIN | Spare parts |
33 | NlIGATA | Spare parts |
Cummins Marine Engine as below:
Cummins Marine engine list | ||||||||
Cummins 4BT3.9 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 4BT3.9-M80 | 4 | 102/120 | 3.9 | 60/2200 | propulsion | 776*583*908 | 331 |
Cummins | 4BTA3.9-M100 | 4 | 102/120 | 3.9 | 74/2200 | propulsion | 776*583*908 | 331 |
Cummins | 4BTA3.9-GM47 | 4 | 102/120 | 3.9 | 47/1500 | auxiliary | 776*583*908 | 331 |
Cummins | 4BTA3.9-GM55 | 4 | 102/120 | 3.9 | 55/1500 | auxiliary | 776*583*908 | 331 |
Cummins | 4BTA3.9-GM65 | 4 | 102/120 | 3.9 | 65/1800 | auxiliary | 776*583*908 | 331 |
Cummins 6BT5.9 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 6BT5.9-M120 | 6 | 102/120 | 5.9 | 90/2200 | propulsion | 1182*684*1128 | 443 |
Cummins | 6BTA5.9-M150 | 6 | 102/120 | 5.9 | 110/2200 | propulsion | 1182*712*1128 | 460 |
Cummins | 6BT5.9-GM83 | 6 | 102/120 | 5.9 | 83/1500 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTA5.9-GM100 | 6 | 102/120 | 5.9 | 100/1500 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTA5.9-GM100 | 6 | 102/120 | 5.9 | 100/1800 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTAA5.9-GM115 | 6 | 102/120 | 5.9 | 115/1500 | auxiliary | 1182*712*1128 | 460 |
Cummins | 6BTA5.9-GM120 | 6 | 102/120 | 5.9 | 120/1800 | auxiliary | 1182*712*1128 | 460 |
Cummins 6CTA8.3 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 6CTA8.3-M188 | 6 | 114/135 | 8.3 | 138/2328 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M205 | 6 | 114/135 | 8.3 | 151/2328 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M215 | 6 | 114/135 | 8.3 | 160/2200 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M230 | 6 | 114/135 | 8.3 | 172/2200 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M240 | 6 | 114/135 | 8.3 | 179/2200 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-M260 | 6 | 114/135 | 8.3 | 194/1800 | propulsion | 1405*768*1179 | 604 |
Cummins | 6CT8.3-GM115 | 6 | 114/135 | 8.3 | 115/1500 | auxiliary | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-GM129 | 6 | 114/135 | 8.3 | 129/1800 | auxiliary | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-GM155 | 6 | 114/135 | 8.3 | 155/1500 | auxiliary | 1405*768*1179 | 604 |
Cummins | 6CTA8.3-GM175 | 6 | 114/135 | 8.3 | 175/1800 | auxiliary | 1405*768*1179 | 604 |
Cummins 6LTAA8.9 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | 6LTAA8.9-M300 | 6 | 114/145 | 8.9 | 224/1800 | propulsion | 1500*1100*1450 | 640 |
Cummins | 6LTAA8.9-M315 | 6 | 114/145 | 8.9 | 230/2134 | propulsion | 1500*1100*1450 | 640 |
Cummins | 6LTAA8.9-GM200 | 6 | 114/145 | 8.9 | 200/1500 | auxiliary | 1500*1100*1450 | 640 |
Cummins | 6LTAA8.9-GM215 | 6 | 114/145 | 8.9 | 215/1800 | auxiliary | 1500*1100*1450 | 640 |
Cummins QSNT Series marine engine listing | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | QSNT-M240 | 6 | 140/152 | 14 | 179/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M300 | 6 | 140/152 | 14 | 224/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M350 | 6 | 140/152 | 14 | 261/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M400 | 6 | 140/152 | 14 | 298/1858 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-M450 | 6 | 140/152 | 14 | 336/1800 | Marine | 1975*935*1598 | 1430 |
Cummins | QSNT-DM1 | 6 | 140/152 | 14 | 322/1500 | auxiliary | 1975*935*1598 | 1430 |
Cummins | QSNT-DM2 | 6 | 140/152 | 14 | 381/1500 | auxiliary | 1975*935*1598 | 1430 |
Cummins NTA855 Marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | NT855-M190 | 6 | 140/152 | 14 | 140/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NT855-M240 | 6 | 140/152 | 14 | 179/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NT855-M270 | 6 | 140/152 | 14 | 201/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NT855-M300 | 6 | 140/152 | 14 | 224/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M350 | 6 | 140/152 | 14 | 261/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M400 | 6 | 140/152 | 14 | 298/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M400 | 6 | 140/152 | 14 | 298/2100 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-M450 | 6 | 140/152 | 14 | 336/1800 | propulsion | 1975*935*1598 | 1430 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 180/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 240/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 284/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 287/1800 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 313/1500 | auxiliary | 1965*952*1538 | 1433 |
Cummins | NTA855-DM | 6 | 140/152 | 14 | 317/1800 | auxiliary | 1965*952*1538 | 1433 |
Cummins KTA19 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | KT19-M425 | 6 | 159/159 | 18.9 | 317/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M470 | 6 | 159/159 | 18.9 | 351/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M500 | 6 | 159/159 | 18.9 | 373/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M550 | 6 | 159/159 | 18.9 | 410/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M600 | 6 | 159/159 | 18.9 | 447/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M700 | 6 | 159/159 | 18.9 | 522/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M700 | 6 | 159/159 | 18.9 | 522/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M3 | 6 | 159/159 | 18.9 | 447/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-M4 | 6 | 159/159 | 18.9 | 522/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | K19-M500 | 6 | 159/159 | 18.9 | 373/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | K19-M550 | 6 | 159/159 | 18.9 | 410/2100 | propulsion | 2162*965*1761 | 2073 |
Cummins | K19-M600 | 6 | 159/159 | 18.9 | 447/1800 | propulsion | 2162*965*1761 | 2073 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 336/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 403/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 448/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 392/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 463/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | KTA19-DM | 6 | 159/159 | 19 | 507/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 358/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 410/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 425/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 448/1500 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 485/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins | K19-DM | 6 | 159/159 | 19 | 507/1800 | auxiliary | 2151*966*1704 | 2108 |
Cummins KTA38 Marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | KT38-M780 | 12 | 159/159 | 37.8 | 582/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KT38-M800 | 12 | 159/159 | 37.8 | 596/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M750 | 12 | 159/159 | 37.8 | 560/1600 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M800 | 12 | 159/159 | 37.8 | 596/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M850 | 12 | 159/159 | 37.8 | 634/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M900 | 12 | 159/159 | 37.8 | 671/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M0 | 12 | 159/159 | 37.8 | 671/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1000 | 12 | 159/159 | 37.8 | 746/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1 | 12 | 159/159 | 37.8 | 746/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1050 | 12 | 159/159 | 37.8 | 783/1600 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1100 | 12 | 159/159 | 37.8 | 821/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1200 | 12 | 159/159 | 37.8 | 895/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M2 | 12 | 159/159 | 37.8 | 895/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1300 | 12 | 159/159 | 37.8 | 969/1800 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KTA38-M1350 | 12 | 159/159 | 37.8 | 1007/1900 | propulsion | 2152*1462*2083 | 4218 |
Cummins | KT38-DM | 12 | 159/159 | 38 | 560/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KT38-DM | 12 | 159/159 | 38 | 679/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 746/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 821/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 880/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | K38-DM | 12 | 159/159 | 38 | 970/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 560/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 679/1800 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 664/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins | KTA38-DM | 12 | 159/159 | 38 | 814/1500 | auxiliary | 2535*1442*2330 | 4384 |
Cummins KTA50 Marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | KTA50-M1600 | 16 | 159/159 | 50 | 1193/1800 | propulsion | 3343*1331*1909 | 5431 |
Cummins | KTA50-M1700 | 16 | 159/159 | 50 | 1268/1800 | propulsion | 3343*1331*1909 | 5431 |
Cummins | KTA50-M1800 | 16 | 159/159 | 50 | 1342/1800 | propulsion | 3343*1331*1909 | 5431 |
Cummins | KTA50-DM | 16 | 159/159 | 50 | 1097/1500 | auxiliary | 3343*1331*1909 | 5431 |
Cummins | KTA50-DM | 16 | 159/159 | 50 | 1291/1800 | auxiliary | 3343*1331*1909 | 5431 |
Cummins QSM11 marine engine list | ||||||||
Brand | Model | Cyl | Bore/Stroke | Liter | KW/RPM | Application | Dimension | Weight |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 295(220)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 350(260)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 349(260)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 398(297)@1800 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 400(298)@2100 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 448(334)@2100 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 450(336)@2100 | Marine | 1335*825*1159 | 940 |
Cummins | QSM11-M | 6 | 125/147 | 10.8 | 602(449)@2300 | Marine | 1335*825*1159 | 940 |
Cummins engine model Compilation Rules,example :
KTA50-M1600 | |
K | K Series |
T | Turbocharger |
A | Aftercooling |
50 | 50L Dispalcement |
M | Marine main engine |
| 1600 | 1600HP |
Cummins engine application:
SN | Symbol | Application |
1 | M | Marine main propulsion engine |
2 | GM | Marine auxiliary engine |
3 | DM | Marine auxiliary engine |
4 | G | Land generator engine |
5 | P | Fire pump,water pump and other pumps |
6 | L | Rail vehicle |
7 | C | construction machinery (crane, excavator, bulldozer, loader,agricultural machinery etc) |
8 | Other | Vehicle/Automotive(Dump,truck,tractor truck,crane,cement mixed,bus,truck etc) |
9 | Other | Industrial |
Not only supply above engine, also can supply:
Brand | Model | Application |
Cummins | 4B Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | 6B Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | 6C Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | 6L Series Engine | Automotive,Generator,Construction,Marine,Pump |
Cummins | ISD4.5 Series Engine | Automotive |
Cummins | ISB5.9 Series Engine | Automotive |
Cummins | ISD6.7 Series Engine | Automotive |
Cummins | ISL8.9 Series Engine | Automotive |
Cummins | ISL9.5 Series Engine | Automotive |
Cummins | ISZ13 Series Engine | Automotive |
Cummins | ISX12 Series Engine | Automotive |
Cummins | EQB Series Engine | Automotive |
Cummins | ISF Series engine | Automotive |
Cummins | QSB3.9 Series engine | Construction machinery,Generator,Pump |
Cummins | QSB4.5 Series engine | Construction machinery |
Cummins | QSB5.9 Series engine | Construction machinery,Generator |
Cummins | QSB6.7 Series engine | Construction machinery,Generator,Pump |
Cummins | QSC8.3 Series engine | Construction machinery |
Cummins | QSL8.9 Series engine | Construction machinery,Generator |
Cummins | QSZ13 Series engine | Construction machinery,Generator |
Cummins | NTC290 Series engine | Automotive |
Cummins | NT855 Series engine | Construction,Marine,Pump,Generator |
Cummins | K19 Series engine | Construction,Marine,Pump,Generator |
Cummins | K38 Series engine | Construction,Marine,Pump,Generator |
Cummins | K50 Series engine | Construction,Marine,Pump,Generator |
Cummins | QSK19 Series engine | Construction |
Cummins | QSK38 Series engine | Construction |
Cummins | QSNT Series engine | Marine and Generator |
Cummins | MTA11 Series engine | Generator |
Cummins | M11 Series engine | Industrial Market |
Cummins | QSB7 Series engine | Excavating machinery |
Cummins | 6L9.3 Series engine | Excavating machinery |
Cummins | 6LTAA9.3 Series engine | Excavating machinery |
Cummins | QSL9.3 Series engine | Excavating machinery |
Cummins | ISM11 Series engine | Heavy truck |
Cummins | QSM11 Series engine | Marine |
Beside engine,also can supply above engine spare parts
SN | Parts Descriptions |
1 | cylinder head, cylinder block, cylinder liner,crankshaft,camshaft |
2 | piston, piston ring, piston pin,conrod,flywheel,flywheel housing,exhaust |
3 | main bearing, conrod bearing, thrust bearing |
4 | fuel injector, fuel injection pump, common rail |
5 | oil pan gasket, cylinder head gasket |
6 | overhaul gasket kit, upper gasket kit, lower gasket kit |
7 | intake valve,exhuast valve,valve seat,valve rotating |
8 | fuel transfer pump, water pump, oil pump, vacuum pump, power steering |
9 | oil filter, fuel filter, fuel water separator, air filter |
10 | turbocharger,alternator,starter,air compressor |
11 | other spare parts |
Beside cummins engine, other brand engine and spare parts also available,such as:
SN | Brand | Engine or Spare parts |
1 | Deutz | Engine and spare parts |
2 | Googol | Engine and spare parts |
3 | Baudouin | Engine and spare parts |
4 | Doosan | Engine and spare parts |
5 | MAN | Engine and spare parts |
6 | Iveco | Engine and spare parts |
7 | Isuzu | Engine and spare parts |
8 | Toyota | Engine and spare parts |
9 | Nissan | Engine and spare parts |
10 | Shangchai | Engine and spare parts |
11 | Weichai | Engine and spare parts |
12 | Yuchai | Engine and spare parts |
13 | Sinotruk | Engine and spare parts |
14 | Fada | Gearbox |
15 | Advance | Gearbox |
16 | ABB | Turbocharger |
17 | MAN | Turbocharger |
18 | EMD | Spare parts |
19 | GE | Spare parts |
20 | ALCO | Spare parts |
21 | MAN | Spare parts |
22 | MTU | Spare parts |
23 | Pielstick | Spare parts |
24 | DAIHATSU | Spare parts |
25 | MAK | Spare parts |
26 | SULZER | Spare parts |
27 | WARTSILA | Spare parts |
28 | SKL | Spare parts |
29 | RUSTON | Spare parts |
30 | YANMAR | Spare parts |
31 | AKASAKA | Spare parts |
32 | HANSHIN | Spare parts |
33 | NlIGATA | Spare parts |
