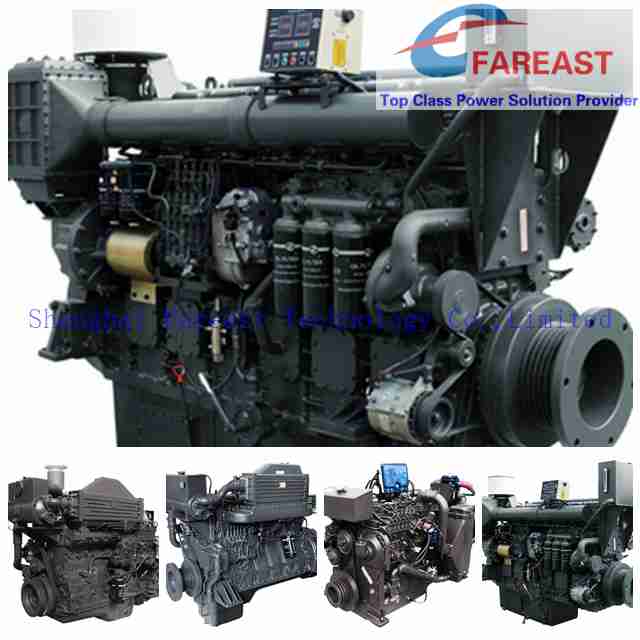

Shangchai Marine Engine

Shangchai H Series Marine Engine,4 or 6 cylinders in line, 4 stroke,turbocharger and inter-cooling

Brand

Model

Cyl

Bore/Stroke

Liter

KW/RPM

Application

Dimension

Weight

Shangchai

SC4H100CA

4

105*124

4.3

66/1500

Marine

976*729*1028

495

Shangchai

SC4H110CA

4

105*124

4.3

73/1800

Marine

976*729*1028

495

Shangchai

SC4H125CA2

4

105*124

4.3

82/1500

Marine

976*729*1028

540

Shangchai

SC4H140CA2

4

105*124

4.3

93/1500

Marine

976*729*1028

540

Shangchai

SC4H155CA2

4

105*124

4.3

103/1500

Marine

976*729*1028

540

Shangchai

SC4H170CA2

4

105*124

4.3

113/1800

Marine

976*729*1028

540

Shangchai

SC7H175CA2

6

105*124

6.5

115/1500

Marine

1266*729*1179

675

Shangchai

SC7H195CA2

6

105*124

6.5

129/1500

Marine

1266*729*1179

675

Shangchai

SC7H190CA2

6

105*124

6.5

125/1800

Marine

1266*729*1179

675

Shangchai

SC7H220CA2

6

105*124

6.5

115/1500

Marine

1266*729*1179

675

Shangchai

SC7H235CA2

6

105*124

6.5

129/1500

Marine

1266*729*1179

675

Shangchai

SC7H250CA2

6

105*124

6.5

125/1800

Marine

1266*729*1179

675

Shangchai

SC4H95CF2

4

105*124

4.3

62/1500

Auxiliary

976*729*1028

495

Shangchai

SC4H115CF2

4

105*124

4.3

78/1500

Auxiliary

976*729*1028

495

Shangchai

SC4H160CF2

4

105*124

4.3

105/1500

Auxiliary

976*729*1028

540

Shangchai

SC4H180CF2

4

105*124

4.3

62/1500

Auxiliary

976*729*1028

540

Shangchai

SC7H230CF2

6

105*124

6.5

78/1500

Auxiliary

1266*729*1179

675

Shangchai

SC7H250CF2

6

105*124

6.5

105/1500

Auxiliary

1266*729*1179

675

Shangchai D Series Marine Engine,6 cylinders in line, 4 stroke,turbocharger and inter-cooling

Brand

Model

Cyl

Bore/Stroke

Liter

KW/RPM

Application

Dimension

Weight

Shangchai

D683ZLCA3B

6

114*135

8.3

225/2300

Marine

1458*823*1028

800

Shangchai

D683ZLCA8B

6

114*135

8.3

234.5/2330

Marine

1458*823*1028

800

Shangchai

D683ZLCA9B

6

114*135

8.3

264/2430

Marine

1458*823*1028

800

Shangchai G Series Marine Engine,6 cylinders in line, 4 stroke,turbocharger and inter-cooling

Brand

Model

Cyl

Bore/Stroke

Liter

KW/RPM

Application

Dimension

Weight

Shangchai

G128ZCa

6

135*150

12.8

162/1500

Marine

1458*823*1028

1315

Shangchai

G128ZCa1

6

135*150

12.8

162/1800

Marine

1458*823*1028

1315

Shangchai

G128ZLCa

6

135*150

12.8

187/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCa1

6

135*150

12.8

200.5/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCa2

6

135*150

12.8

236/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCa3

6

135*150

12.8

187/1800

Marine

1458*823*1028

1350

Shangchai

G128ZLCa5

6

135*150

12.8

267/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCa12

6

135*150

12.8

236/1800

Marine

1458*823*1028

1350

Shangchai

G128ZLCa15

6

135*150

12.8

267/1800

Marine

1458*823*1028

1350

Shangchai

G128ZCaf1

6

135*150

12.8

165.3/1500

Marine

1458*823*1028

1350

Shangchai

G128ZCaf2

6

135*150

12.8

165.3/1800

Marine

1458*823*1028

1350

Shangchai

G128ZLCaf

6

135*150

12.8

187/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCaf1

6

135*150

12.8

200.5/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCaf2

6

135*150

12.8

242.4/1500

Marine

1458*823*1028

1350

Shangchai

G128ZLCaf3

6

135*150

12.8

278.8/1500

Marine

1458*823*1028

1350

Shangchai

SC15G400CA2

6

135*150

14.2

267/1500

Marine

1680*884*1550

1350

Shangchai

SC15G420CA2

6

135*150

14.2

280/1500

Marine

1680*884*1550

1350

Shangchai

SC15G460CA2

6

135*150

14.2

308/1500

Marine

1680*884*1550

1350

Shangchai

SC15G420.1CA2

6

135*150

14.2

280/1800

Marine

1680*884*1550

1350

Shangchai

SC15G500CA2

6

135*150

14.2

330/1500

Marine

1680*884*1550

1350

Shangchai

SC15G500.1CA2

6

135*150

14.2

330/1800

Marine

1680*884*1550

1350

Shangchai W Series Marine Engine,6 cylinders in line, 4 stroke,turbocharger and inter-cooling

Brand

Model

Cyl

Bore/Stroke

Liter

KW/RPM

Application

Dimension

Weight

Shangchai

SC33W680CA2

6

180*215

33

500/1350

Marine

2551*1283*1898

3400

Shangchai

SC33W825CA2

6

180*215

33

605/1500

Marine

2551*1283*1898

3400

Shangchai

SC33W825CA2

6

180*215

33

500/1200

Marine

2551*1283*1898

3400

Shangchai

SC33W625CA2

6

180*215

33

460/1000

Marine

2551*1283*1898

3400

Shangchai

SC33W680.2CA2

6

180*215

33

500/1000

Marine

2551*1283*1898

3400

Shangchai

SC33W680.1CA2

6

180*215

33

500/1200

Marine

2551*1283*1898

3400

Shangchai

SC33W735.1CA2

6

180*215

33

540/1000

Marine

2551*1283*1898

3400

Shangchai

SC33W770CA2

6

180*215

33

565/1000

Marine

2551*1283*1898

3400

Shangchai

SC33W825.2CA2

6

180*215

33

605/1200

Marine

2551*1283*1898

3400

Shangchai

SC33W825.1CA2

6

180*215

33

605/1350

Marine

2551*1283*1898

3400

Shangchai

SC33W880.1CA2

6

180*215

33

650/1350

Marine

2551*1283*1898

3400

Shangchai

SC33W880CA2

6

180*215

33

650/1500

Marine

2551*1283*1898

3400

Shangchai

SC33W950CA2

6

180*215

33

700/1500

Marine

2551*1283*1898

3400

Shangchai

SC33W1000CA2

6

180*215

33

735/1500

Marine

2551*1283*1898

3400

SC

ShangChai

9

9L Displacement

D

D Series

K

Electronically Controlled Two Valves

F

Electronically Controlled Four Valves

T

Gas Engine

280

280HP

Q

Automotive application

3

Euro 3 Emission

D

D Series

6

6 Cylinder

83

8.3L Displacment

ZL

Turbocharging and intercooling

CA

Marine left-handed rotation

3B

Application

1

T

Agricultural machinery

2

G or Missing

General purpose type or basic type

3

Q

Automotive

4

D

Land generator or Pump or Stationary Power

5

K

construction machinery (crane, excavator, bulldozer, loader,agricultural machinery etc)

6

J

Rail vehicle

7

C/CF

Marine Right-handed rotation

8

CA

Marine left-handed rotation

Shangchai

H Series Engine

Pump,Marine,Construction machinery,Generator,Automotive

Shangchai

D Series Engine

Pump,Marine,Construction machinery,Generator,Automotive

Shangchai

E Series Engine

Pump,Construction machinery,Generator,Automotive

Shangchai

G Series Engine

Pump,Marine,Generator

Shangchai

W Series Engine

Pump,Marine,Generator

Shangchai

C Series Engine

Construction machinery

Shangchai

R Series Engine

Automotive

1

cylinder head, cylinder block, cylinder liner,crankshaft,camshaft

2

piston, piston ring, piston pin,conrod,flywheel,flywheel housing,exhaust

3

main bearing, conrod bearing, thrust bearing

4

fuel injector, fuel injection pump, common rail

5

oil pan gasket, cylinder head gasket

6

overhaul gasket kit, upper gasket kit, lower gasket kit

7

intake valve,exhuast valve,valve seat,valve rotating

8

fuel transfer pump, water pump, oil pump, vacuum pump, power steering

9

oil filter, fuel filter, fuel water separator, air filter

10

turbocharger,alternator,starter,air compressor

11

other spare parts
